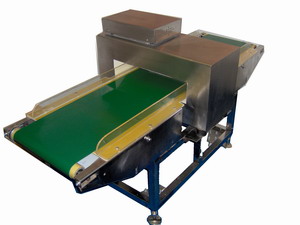

Metal detector 1

  Beam direction: Topdown
  Detect height(mm):120-410
  Detect width(mm):400
  Alarm/stop or reject
  Tunnel size:400mm(H);120-410mm(W)
  Metal detected in food, pharmaceutical, food additive, and toy, etc.
  Sensitivity Fe¶’ 0.5-2.0mm
  Sensitivity SUS304¶’ 1.2-3.0mm

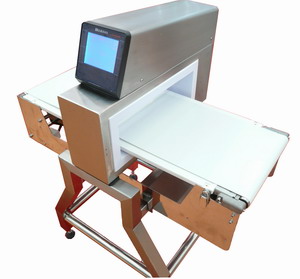

Metal detector 4 sensivity switch between iron and non-iron

  Beam direction: Topdown
  Belt speed(m/min):10-50
  Detect height(mm):120-410
  Detect width(mm):400
  Alarm/stop transfer or reject
  Tunnel width: 400 mm(H);120-410 mm(W)
  Metal impurities detected in food, pharmaceutical, food additive, condiment, health care things and toy, etc.
   Sensitivity Fe¶’ 0.5-2.0mm
   Sensitivity SUS304¶’ 1.2-3.0mm

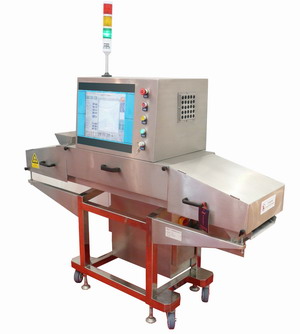

X-RAY inspection detector 5 window xp touch screen, image processing, mode detecting, safety shield

  Beam direction: Topdown
  Operate power:AC220V,50Hz
  Anode voltage: 80 KV
  Power consumption: 1.0 KVA ( maximum value )
  Anode current: < 1 mA
  Overall dimension: 1800 mm * 520 mm * 1450 mm
  Tunnel width: 400 mm; 250 mm
  Suitable for sweets, gingelli, peanut, bulk products.
  The sensitivity on the belt is between 0.2 and 0.4mm

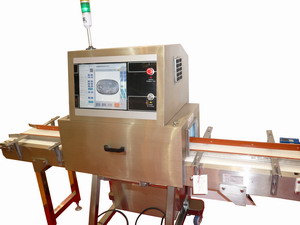

X-RAY inspection detector 6 window xp touch screen, image processing, mode detecting, safety shield

  Beam direction: Topdown
  Operate power:AC220V,50Hz
  Anode voltage: 80 KV
  Power consumption: MAX 1KVA
  Anode current: < 1 mA
  Overall dimension: 1.8mx0.5mx 1.5m
  Tunnel width:400mm;250mm
  Suitable for sweets, peanut, packaged products.
  The sensitivity is between 0.2 and 0.4mm

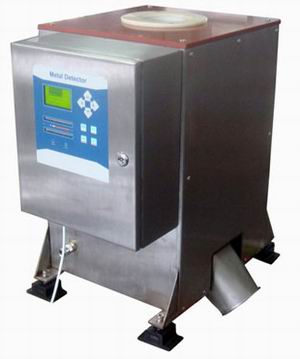

Metal detector 8 falling tube X ray detector

  Inspection size(mm): 50-200
  Sensitivity Fe¶’:0.8-2.0mm
  Sensitivity SUS316¶’:1.5-4.0mm
  Consumption: 100-200VA
  self-learing capability, over 100 types of products information can be stored
  Tube ¶’(mm): 50 - 200 mm
  Suitable free falling products.
  Alarm light, alarm to stop transfer or reject setting

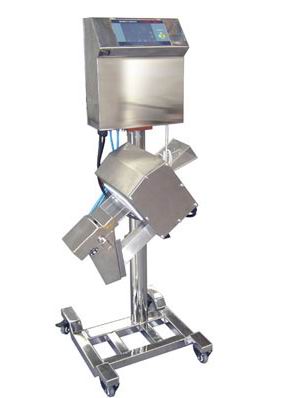

Metal detector 9 falling tunnel X ray detector for pill or candy

  Inspection size(mm): 50-200
  Sensitivity Fe¶’(mm):0.8-2.0
  Sensitivity SUS316¶’(mm):1.5-4.0
  Power consumption: 100-200VA
  self-learing capability, over 100 types of products information can be stored
  Tube size: H50xL200mm or customerized
  Suitable for free falling products like pills or candies.
  Alarm light, alarm to stop transfer or reject setting

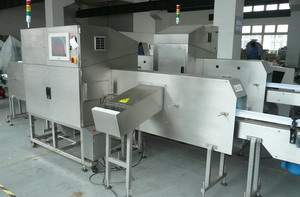

VHX dual direction tin/can/bottle X ray detector for food/drink/medicine

  Inspection size(mm): 50-200
  Sensitivity Fe¶’(mm):0.8-2.0
  Sensitivity SUS316¶’(mm):1.5-4.0
  Power consumption: 1000-1500VA
  self-learing capability, over 100 types of products information can be stored
  Tube size: H50xL200mm or customerized
  reject stone, plastic, metal, glass, etc
  Alarm light, alarm to stop transfer or reject setting

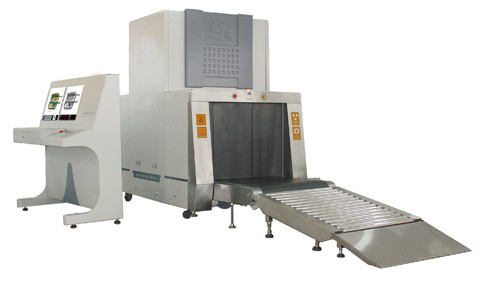

LHX dual direction airport subway luggage X ray detector with screen watching

  Inspection size(mm): 1200x1200
  Sensitivity Fe¶’(mm):0.8-2.0
  Sensitivity SUS316¶’(mm):1.5-4.0
  Power consumption: 1000-1500VA
  self-learing capability, over 100 types of products information can be stored
  double screen watching
  classify stone, plastic, metal, glass, liquid etc
