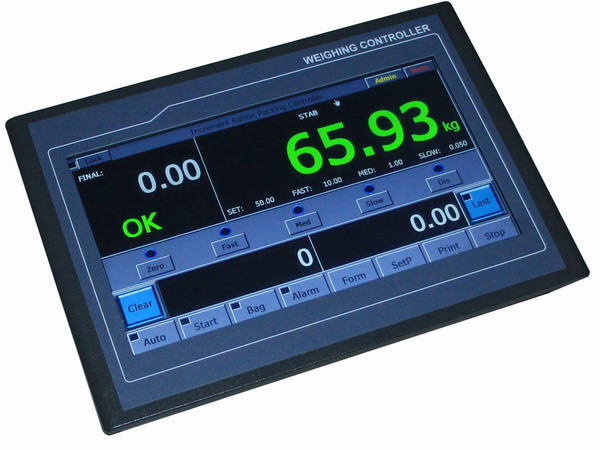

NEWLY DEVELOPED 7" touch screen batch feed fill setpoint weighing controller

  Filling or feeding function
  Batching function
  Subtractive function
  30 prescriptions
  Prescription record storage function
  RS232, optional RS485, Ethernet
  Multi-network support
  3 speed
  10 outputs,10 inputs interface
  0-10v or 4-20mA D/A output optional
  Password protection optional
  PC communication support
  Friendly HMI, easy to operate
  Quick responding
  Dynamic animation of feeding progress
  Installaion size:138Hx192Lx65Dmm

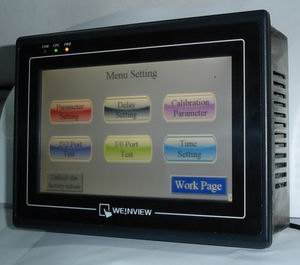

NEWLY DEVELOPED 10"/7" touch screen batching feeding filling setpoint multi scale weighing controller

  Filling or feeding function
  Batching function
  Subtractive function
  20 prescriptions
  Prescription record storage function
  RS232, optional RS485, Ethernet
  MODBUS, PROPHIBUS-DP, USB
  1204*600(10") dpi
  16 outputs,9 inputs interface
  0-10v or 4-20mA D/A output optional
  Password protection optional
  PC communication support
  Friendly HMI, easy to operate
  Quick responding
  Multi-network support
  Installaion size:273Hx192Lx40Dmm(10")

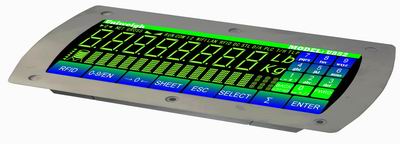

NEWLY DEVELOPED High Light Green VFD Display batch feed fill weighing controller

  Filling or feeding function
  Batching function
  Subtractive function
  200 prescriptions
  Prescription record storage function
  Historical record retrieving function
  RS232, 485,optional RFID, Lan, Wifi
  Multi-network support
  3 speed
  14 outputs,12 inputs interface
  0-10v or 4-20mA D/A output optional
  Password protection
  PC communication support
  Friendly HMI, easy to operate
  Settable feeding speed
  Dynamic animation of feeding progress
  Installaion size:260Hx120Lx45Dmm

X serials batch feed fill setpoint weighing controller

  Filling or feeding function
  Batching function
  Subtractive function
  Setpoint function 3points or 5points
  30 prescriptions
  Prescription record storage function
  RS232, optional RS485, Ethernet
  Multi-network support
  3 speed
  10 outputs,10 inputs interface
  0-10v or 4-20mA D/A output optional
  Password protection optional
  PC communication support
  Installaion size:160Hx75Lx110Dmm

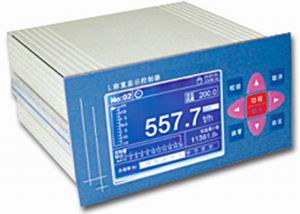

L serials hanging belt weighing controller

  Belt controller
  Historical record storage and retrieving
  A/D speed:100times/second
  Sensetivity:0.1uV/d
  Speed sensor:Light electric, electric magnetic, approaching switch
  Speed sensor range:DC12V,50mA
  Minimium resolution 0.1
  0-10V, 4-20mA, or 0-5V D/A
  RS232, optional RS485, CAN
  Precision:0.1%
  2 output interface
  Protocal: Ethernet, ModbusRTU, Profibus-DP, Device Net, Modbus, customerized
  PID control output
  Installation Size: 151x76mm
  Output flow signal
  IP66 protection

L serials inserting belt weighing controller

L serials table set belt weighing controller
