The combined weighing system is an world advanced complex material feeding/filling system, it's widelyused for rubber, glass, cable and various industry applications. Main function is to meet the complex prescription products which needs precise feeding requirement. It can feed or fill different materials like powder, granule and liquid precisely at the same time, and the liquid filling scale can also keep warming the liquid output through its liquid heating rubber tubes, which can meet special chemicial liquid condition requirement. and the whole system is extandable for multi scale working, which allows user to feed or fill more than 10 different materials at the same time. It's very suitable for various condition materials precise feeding.
Combined dynamic filling system-liquid scale |
High pressure liquid dosing pump for continous filling
Built in blender for good liquid flowing optional
Dynamic weighing precision 1/100
Minimium resolution 1g
Standard weighing capacity: 0-10kg customerized
Standard Speed: 4-20kg/h customerized
Output: Spray gun for even filling
|

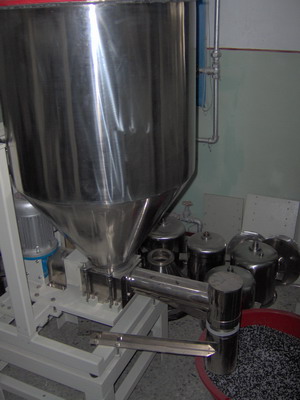

Combined dynamic filling system-granule scale |
Hollow single screw output
Built in blender for good granule flowing optional
Dynamic weighing precision 1/100
Minimium resolution 1g
Standard weighing capacity: 0-50kg customerized
Standard Speed: 200-800kg/h
customerized
|
Combined dynamic filling system-powder scale |
Hollow single screw output
Built in blender for good powder flowing optional
Dynamic weighing precision 1/100
Minimium resolution 1g
Standard weighing capacity: 0-10kg customerized
Standard Speed: 0.5-5kg/h
customerized
|
Combined dynamic filling system-control box |
 |
Combined dynamic filling system-WINDOWS 7 touch screen of control box |
 |
Combined dynamic filling system-extendable interface |
 |

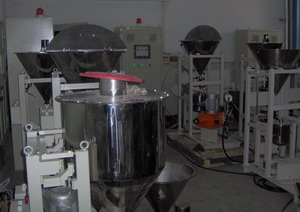

Combined dynamic filling system |
User can combine more than 3 scales to feed multi materials at the same time, like 2 granule, 2 powder, 1 liquid, which extends to 5 scales. It's also customerized.
|
|
