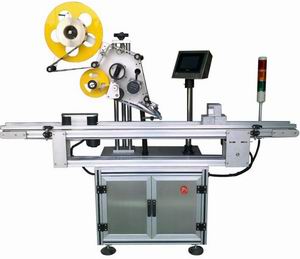

Horizontal labeller 1

  Speed 50-200BPM
  Max Label Width 150£¨mm£©
  Label Precision¡À 1£¨mm£©
  Product Size 10-80£¨mm£©
  Automatic Level fully automatic
  Size:1800X700X1600mm
  quick and stable air force coding and printing clearly£»convient to adjust, multi machine network connection.
  Package Type cup, bag, dish, pipe, can, box, bottle, barrel suitable industrial chemical, household chemicals, food, medicine

Small bottle labeller labeller 2

  Speed 80-260BPM
  Max Label Width 150£¨mm£©
  Label Precision¡À 1£¨mm£©
  Air Pump Force:5kg/cm2
  ontainer Size:External Diameter16-50 mm£¬Height35-80 mm
  Label Size:Height10-70 mm£¬Length10-160 mm
  Product Size 50£¨mm£©
  Automatic Level fully automatic
  Size:1600(L)¡Á500(W)¡Á1270(H)mm
  quick and stable air force coding and printing clearly£»convient to adjust, multi machine network connection.
  Package Type cup, bag, dish, pipe, can, box, bottle, barrel suitable industrial chemical, household chemicals, food, medicine

Big bottle labeller 3

  Speed 30-260BPM
  Max Label Width 300£¨mm£©
  Label Precision¡À 1£¨mm£©
  Product Size 120£¨mm£©
  Air Pump Force:5kg/cm2
  Label Size:Height15-90 mm, Length23-300 mm
  Container Size: External Diameter16-120 mm, Height35-200 mm
  Size:1800£¨L)¡Á700(W)¡Á1270(H) mm
  quick and stable air force coding and printing clearly£»convient to adjust, multi machine network connection.
  Package Type cup, bag, dish, pipe, can, box, bottle, barrel suitable industrial chemical, household chemicals, food, medicine

Tilt labeller 4

  Speed 200-300BPM
  Max Label Width 65£¨mm£©
  Label Precision¡À 1£¨mm£©
  Product Size 20£¨mm£©label
  Air Pump Force:5kg/cm2
  Label Size:Height15-80 mm£¬Length10-65 mm
  Container Size:External Diameter7-20 mm£¬Height30-80 mm
  Size:1800£¨L£©¡Á700£¨W£©¡Á1800£¨H£©mm
  quick and stable air force coding and printing clearly£»convient to adjust, multi machine network connection.
  Package Type cup, bag, dish, pipe, can, box, bottle, barrel suitable industrial chemical, household chemicals, food, medicine

Double side labeller 5

  Speed 30-120BPM
  Max Label Width 200£¨mm£©
  Label Precision¡À 1£¨mm£©
  Product Size 120£¨mm£©
  Air Pump Force:5kg/cm2
  label internal diameter:¦µ 76 mm label External Diameter:¦µ 300 mm
  Size:2000£¨L£©¡Á1350£¨W£©¡Á1500£¨H£©mm
  quick and stable air force coding and printing clearly£»convient to adjust, multi machine network connection.
  Package Type cup, bag, dish, pipe, can, box, bottle, barrel suitable industrial chemical, household chemicals, food, medicine

Fixed position labeller 6

  Speed 30-80BPM
  Max Label Width 130£¨mm£©
  Label Precision¡À 1£¨mm£©
  Product Size 120£¨mm£©
  Air Pump Force:5kg/cm2
  Label Size:Length15-90 mm,Height15-130 mm
  Container Size:diameter 20-80 mm,Height30-200 mm
  Size:1800£¨L)¡Á800(W)¡Á1500(H)mm
  quick and stable air force coding and printing clearly£»convient to adjust, multi machine network connection.
  Package Type cup, bag, dish, pipe, can, box, bottle, barrel suitable industrial chemical, household chemicals, food, medicine

Single label multi side labeller 7

  Speed 50-100BPM
  Max Label Width 300£¨mm£©
  Label Precision¡À 1£¨mm£©
  Product Size 50-200£¨mm£©
  Air Pump Force:5kg/cm2
  Labels: transparent, non transparent
  Size£¨mm£©2400£¨L£©¡Á1350£¨W£©¡Á1500£¨H£©mm
  Label Internal diameter 76mm Label roll External Diameter 300mm
  square bottle single side, double side, triple side or 4 side, fan shape bottle single side, double side, like health care products, hair shampoo, bathing shampoo, oil, washing liquid, eye medical liquid bottle, etc, also add additional equipment for round bottle labeling.

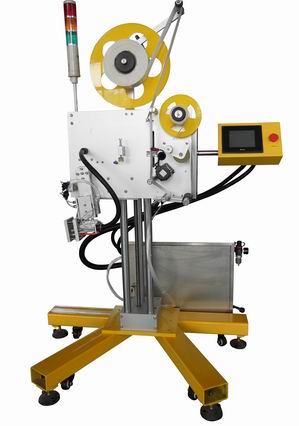

Live printing labeller 8

  Speed 80BPM
  Max Label Width 200£¨mm£©
  Label Precision¡À 1.5£¨mm£©
  Product Size 120£¨mm£©
  Air Pump Force:5kg/cm2
  Flexible editing software-
  Ethernet communication
  Labelling method: top label, side label, corner label
  Resolution: 203,300, or 600dpi optional
  Print speed: 305mm/sec.(203dpi), 203mm/sec.(300dpi)
  Communication:RS232 or RS485
  Print speed: 305mm/sec.(203dpi), 203mm/sec, (300dpi)
  label internal diameter:¦µ 76 mm label External Diameter:¦µ 300 mm
  Machine size:(L)1000mmX(W)850mmX(H)1900mm
  Instant print and instant label
  Various labeling methods---air force, sweep label, corner label etc, which can meet various situations and products labeling

LBC high speed bottle automatic shrink label sleeving machine

  Steaming shirnk oven
  100-600bpm for different type
  D30-D65mm/D65-D95mm/D95-D115mm
  Optional electronic heat oven
  Label Length 30mm~300mm
  Label thickness 0.04mm~0.08mm
  Machine size 1800x840x2030mm
  Label Material PVC,PET,OPS, PP, PE, BOPS

CEP high speed cap automatic feeder and capper

  Cap elevator
  30-60bpm for different type
  different cap diameter
  Optional vibrator cap feeder

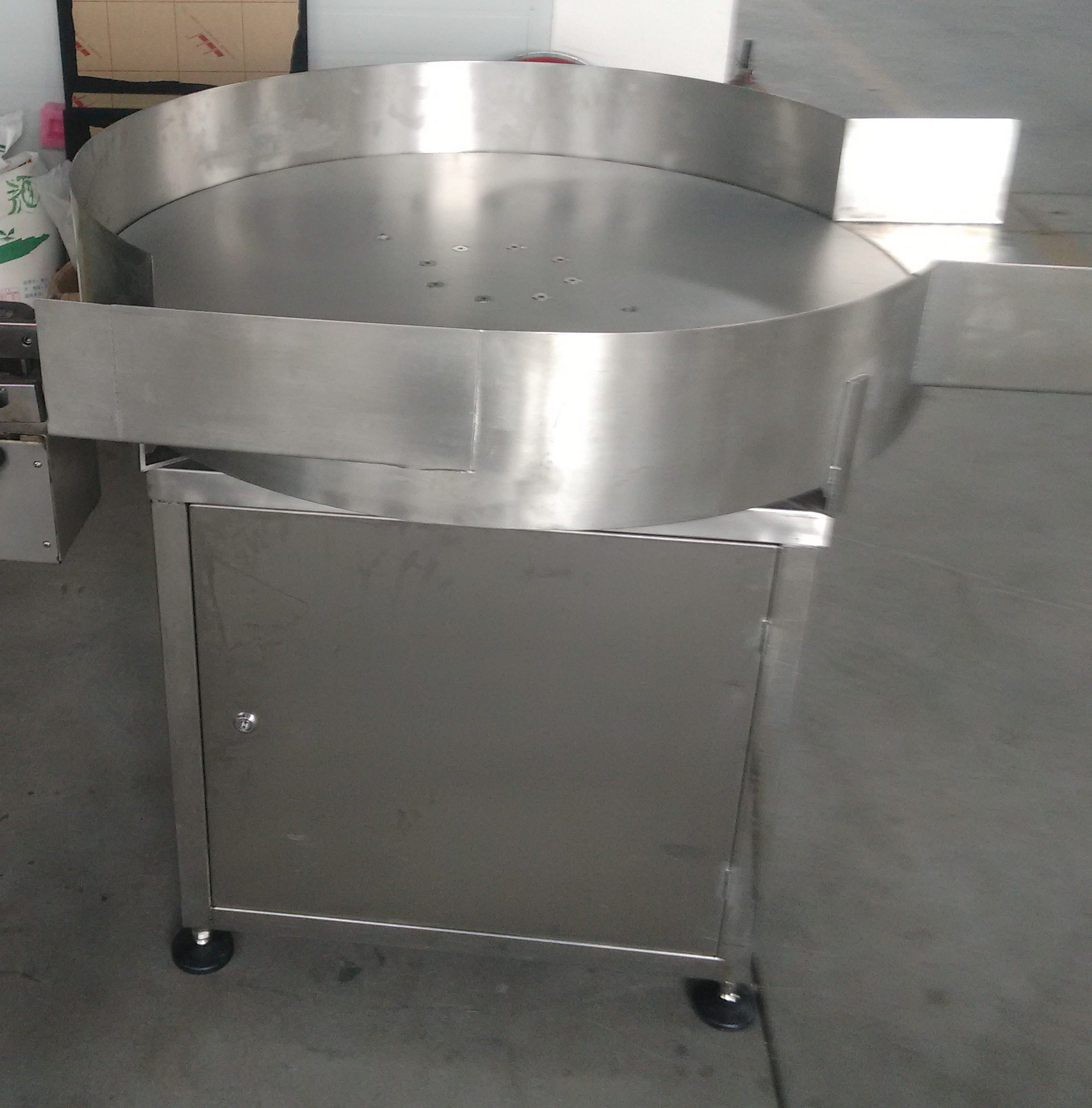

FBC high speed finished bottle automatic collect table

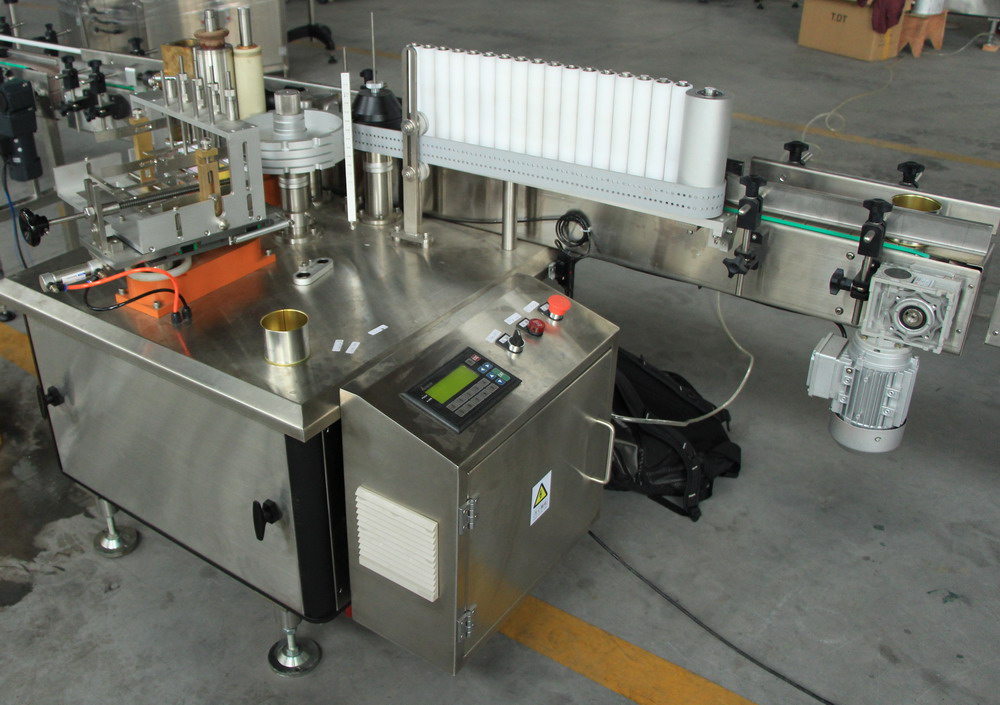

XT high speed hot cold wet glue labeling machine

  suitable for different label
  50000bph for different type
  suitable for hot/cold/wet glue
  Optional electronic heat oven
  Label Length 30mm~300mm
  Label thickness 0.04mm~0.3mm
  Machine size 1600x810x1030mm
  Label Material PVC,PET,OPS, PP, PE, BOPS,Paper

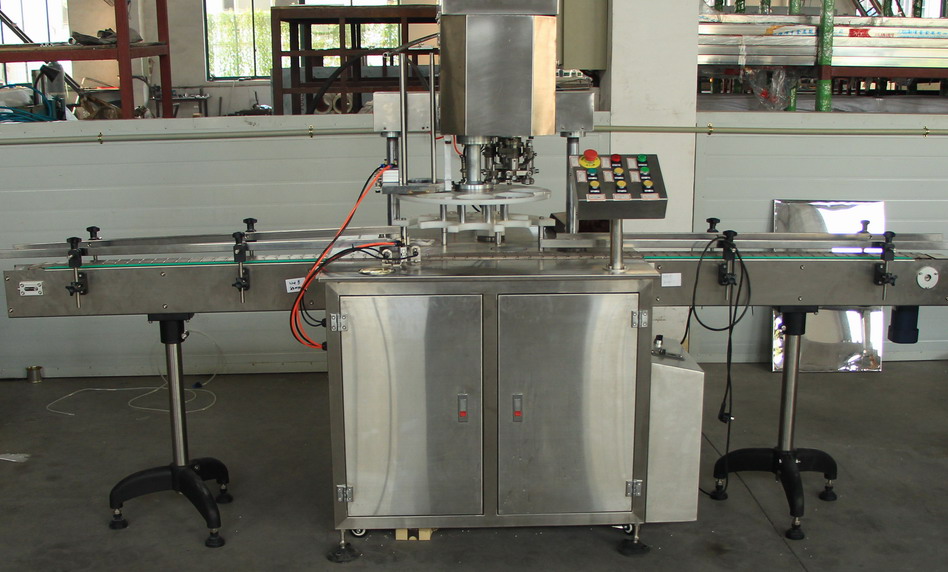

XTG high speed bottle lid seaming machine

  Suitable for different Dia
  60-300bpm for different heads
  Adjustable height
  Air consumption 0.1cbm/min
  Horse:0.5kw
